PLANET

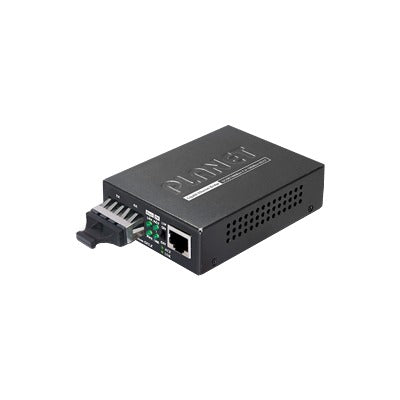

Advanced Connectors SC, up to 6.21 miles (20 km), SM, 10/100/1000Base-T to 1000 Base-SX/LX Gigabit Media Converter

Advanced Connectors SC, up to 6.21 miles (20 km), SM, 10/100/1000Base-T to 1000 Base-SX/LX Gigabit Media Converter

Regular price $69.00 USD
Regular price $84.00 USD Sale price $69.00 USD
Sale Sold out
Shipping calculated at checkout.

Fiber-optic Networking for ISPs, Enterprises, and homes

With high performance of data transmission and easy installation, the GT-80x can build the ISP network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTBs (Fiber to the Building), for small office network environment of enterprises.









Hardware Specifications

Hardware Version

6

Ports

1 port SC 1000BASE-LX:

Copper interface

Port RJ45 (auto-MDI/MDI-X) twisted pair

Optical interface

Yes

Fiber maximum distance

20km

Optic wavelength

 1310nm

Max. optical launch power

 -3dBm

Min. optical launch power

 -9.5dBm

Max. input power

 -3

Min. input power

 -20

Optical link budget

4,9 dB

Dip switch

LFP function (Disable / Enable)

Power consumption

4,6 Watts/15 BTU (maximum)

Power input

5V CC / 2A

Dimensions

94 x 70 x 26 mm

Weight

                                                      0,2 kg

Operating environment

Storage temperature: 0 to 50 degrees C
Humidity: 5~95% non-condensing

Storage environment

Storage temperature: -10 to 70 degrees C
Humidity: 5~95% non-condensing
